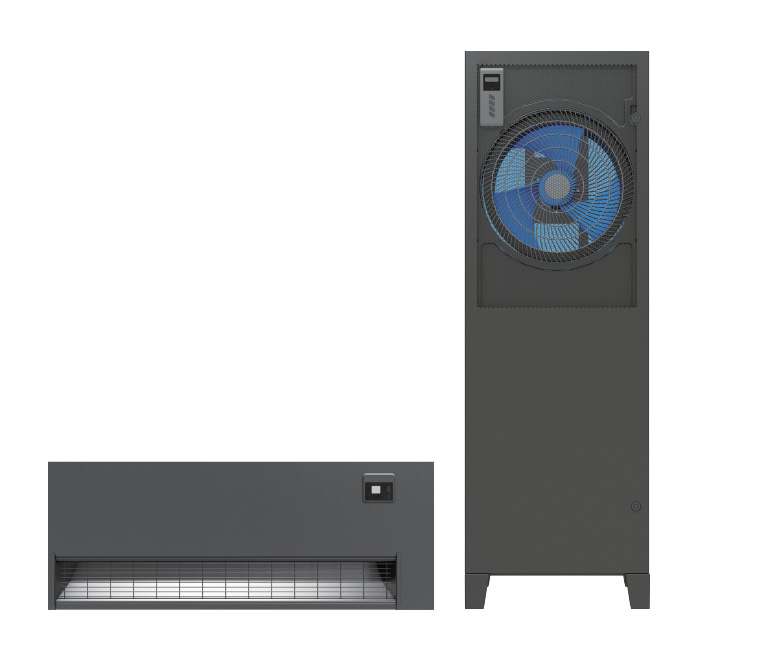

Base Station Air Conditioner
Product Description
JF/JB frequency conversion series base station air conditioners are customized for application scenarios such as base stations/small computer rooms, and can perfectly solve the problem of regular peak valley fluctuations in thermal load in scenarios, maintaining stable environmental temperature.
Product Details
| Minimum Order Quantity | 1pcs |
|---|---|
| Payment Terms | T/T in advance |
| Place | China |
|
|
1.5HP cooling only single-phase cabinet type |
1.5HP cooling &heating single-phase cabinet type |
2HP cooling only single-phase hanging type |
2HP cooling &heating single-phase hanging type |
|
Model |
JBB035K1 |
JBB035K5 |
JBB050K1 |
JBB050K5 |
|
Heating Capacity kW |
/ |
3.75 |
/ |
5.5 |
|
Cooling Capacity kW |
3.5 |
3.5 |
5 |
5 |
|
Sensible heat ratio |
0.9 |
0.9 |
0.83 |
0.83 |
|
Rated power of cooling kW |
1.2 |
1.2 |
1.7 |
1.7 |
|
SEER or APF |
5.8 |
5.0 |
5.5 |
4.5 |
|
Rated power of heating kW |
/ |
1.3 |
/ |
2.0 |
|
Rated power of compressor kW |
0.8 |
0.8 |
1.085 |
1.085 |
|
Fan type |
Cross flow fan |
|
|
|
|
Air supply volume m3/h |
800 |
800 |
950 |
950 |
|
Cold air ratio |
4.38 |
4.38 |
5.26 |
5.26 |
|
Maximum operating power of the fan kW |
0.04 |
0.04 |
0.04 |
0.04 |
|
Indoor unit size mm |
897*360*250 |
897*360*250 |
980*360*250 |
980*360*250 |
|
Indoor unit weight kg |
13 |
14 |
15 |
16 |
|
Maximum operating power of external fan kW |
0.1 |
0.1 |
0.1 |
0.1 |
|
Outdoor unit size mm |
840*300*670 |
840*300*670 |
840*300*670 |
840*300*670 |
|
Outdoor unit weight kg |
31 |
32 |
33 |
34 |
|
Refrigerant |
R410A |
R410A |
R410A |
R410A |
|
Refrigerant capacity (standard 3 meter condenser tube) |
1050g |
1050g |
1500g |
1500g |
|
Gas pipe |
9.52 |
9.52 |
12.7 |
12.7 |
|
Liquid pipe |
6.0 |
6.0 |
6.0 |
6.0 |
|
Cable specifications |
3*1.5 |
3*1.5 |
3*1.5 |
3*2.5 |
|
Remark: the table above is only part of the parameters, and the specific configuration is subject to the nameplate. For more information about parameters, please contact us. |
||||
|
|
3HP cooling only single-phase cabinet type |
3HP cooling &heating single-phase cabinet type |
3HP cooling only three-phase cabinet type |
3HP cooling &heating three-phase cabinet type |
5HP cooling only three-phase cabinet type |
5HP cooling &heating three-phase cabinet type |
|
Model |
JFB075C1 |
JFB075C5 |
JFB075C1Y0AW |
JFB075C5Y0AW |
JFB125C1 |
JFB125C5 |
|
Heating Capacity kW |
/ |
8 |
/ |
8 |
/ |
13 |
|
Cooling Capacity kW |
7.5 |
7.5 |
7.5 |
7.5 |
12.5 |
12.5 |
|
Rated power of cooling kW |
2.5 |
2.5 |
2.5 |
2.5 |
4.2 |
4.2 |
|
SEER or APF |
5.2 |
4.2 |
5.2 |
4.2 |
5.2 |
4.2 |
|
Rated power of heating kW |
/ |
2.9 |
/ |
2.9 |
/ |
4.6 |
|
Rated power of compressor kW |
2.08 |
2.08 |
2.08 |
2.08 |
2.68 |
2.68 |
|
Fan type |
Cross flow fan |
Cross flow fan |
Cross flow fan |
Cross flow fan |
Cross flow fan |
Cross flow fan |
|
Air supply volume m3/h |
1800 |
1800 |
1800 |
1800 |
2500 |
2500 |
|
|
|
|
|
|
|
|
|
Maximum operating power of the fan kW |
0.12 |
0.12 |
0.12 |
0.12 |
0.12 |
0.12 |
|
Indoor unit size mm |
580*350*1760 |
580*350*1760 |
580*350*1760 |
580*350*1760 |
580*350*1760 |
580*350*1760 |
|
Indoor unit weight kg |
74 |
75 |
74 |
75 |
80 |
82 |
|
Maximum operating power of external fan kW |
0.12 |
0.12 |
0.12 |
0.12 |
0.24 |
0.24 |
|
Outdoor unit size mm |
728*405*762 |
728*405*762 |
728*405*762 |
728*405*762 |
728*405*1370 |
728*405*1370 |
|
Outdoor unit weight kg |
28 |
28 |
28 |
28 |
50 |
50 |
|
Refrigerant |
R410A |
R410A |
R410A |
R410A |
R410A |
R410A |
|
Refrigerant capacity (standard 3 meter condenser tube) |
2200g |
2200g |
2200g |
2200g |
3800g |
3800g |
|
Gas pipe |
12.7 |
12.7 |
12.7 |
12.7 |
15.88 |
15.88 |
|
Liquid pipe |
6.0 |
6.0 |
6.0 |
6.0 |
9.52 |
9.52 |
|
Cable specifications |
3*2.5 |
3*2.5 |
5*1.5 |
5*2.5 |
5*1.5 |
5*2.5 |
|
Remark: the table above is only part of the parameters, and the specific configuration is subject to the nameplate. For more information about parameters, please contact us. |
||||||
