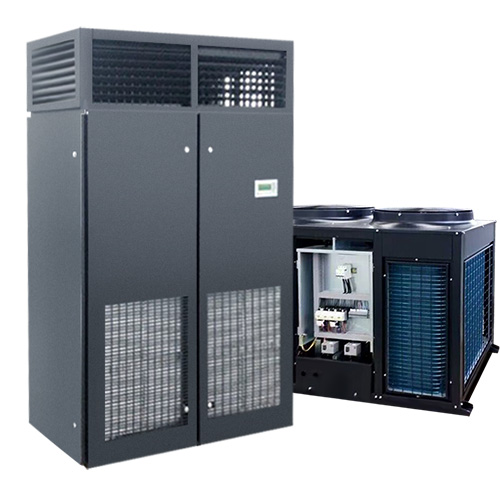

Precision Air Conditioning
Product Description
1.Cooling capacity: 7.5KW-93.6KW
2.Refrigerant: R22（R407C/R410A）
3.Digital control mode, can reach high accuracy.
4.Keep the dust, oil fog and moisture from entering the internal of the equipments.
5.The structure design makes the installation more flexible. And the unit can be installed perfectly in the side or outside wall of the equipment.
6.Totally solve dust and moisture contamination issues caused by ventilation.
7.Widely used in telecommunications, broadcasting, electricity, automation and other industries out-door cabinet, IDC room cooling needs.
Product Details
| Minimum Order Quantity | 1pcs |
|---|---|
| Payment Terms | T/T in advance |
| Place | China |
application
Communications rooms, computer centers
Laboratories, studios
Hospital CT Rooms and MRI Rooms
Purification Plants of Pharmaceutical, electronics factories, etc.
Control centers, monitoring centers
Military Command Centers, etc.
9.52
(9.52)
12.7
(9.52)
12.7
(9.52)
15.88
(12.7)
15.88
(12.7)
15.88
(12.7)
15.88
(12.7)
15.88
(12.7)
15.88
(12.7)
19.05
(15.88)
19.05
(15.88)
22.23
(19.05)
22.23
(19.05)
28.6
(22.23)
28.6
(22.23)
28.6
(22.23)
GT-HFM series constant temperature and humidity precision air conditioner specification 1
Model GT-HFM-（）
07
12
15
18
20
24
27
30
Specification
Total cooling capacity
kW
7.5
12.6
15.3
18.6
21.8
24.2
27.5
31.8
Sensible cooling capacity
kW
6.9
11.7
14.1
17.4
20.2
22.4
25
29.5
Electric heating
kW
3
6
6
9
9
9
12
15
Air volume 2*
m3/h
1800
3250
4100
5200
5400
6600
7500
9000
Outlet air pressure 2*
Pa
25
25
25
50
50
75
75
75
Noise 3*
dB(A)
54
54
55
56
56
56
56
56
Temperature control range and accuracy
℃
18～28,±1
Humidity control range and accuracy
%
45～70,±5
Power
3N-380V-50Hz
Input power 4*
kW
6
11
12.6
16.8
17.5
19
23.9
28.9
Indorr unit
Supply air fan
type
low noise centrifugal type
capacity
kW
0.32
0.55
0.75
1.1
1.1
1.5
2.2
2.2
Electrode humidifier
humidification volume
kg/h
3
3
5
5
5
8
8
8
Electric heating
capacity
kW
3
6
6
9
9
9
12
15
Evaporator type
Inner grooved copper tube and aluminum fin
Air filter
primary efffect plate type filter
Dimension
L
mm
950
1200
1200
1200
1200
1600
1600
1600
W
mm
580
680
680
680
680
780
780
780
H
mm
1800
1880
1880
1880
1880
2000
2000
2200
Weight
kg
190
230
270
290
300
400
430
510
Outdoor unit
Model GT-( )*quantity
WL08*1
WL12*1
WL15*1
WL18*1
WL20*1
WL25*1
WL27*1
WL30*1
compressor
type
Totally enclosed scroll type
quantity
1
1
1
1
1
1
1
1
condenser type
Inner grooved copper tube and aluminum fin
Condensing fan
type
Low noise axial type
capacity
kW
0.37
0.37
0.37
0.55
0.55
0.55
0.75
0.75
Dimension
L
mm
800
850
850
980
980
980
980
980
W
mm
800
850
850
980
980
980
980
980
H
mm
980
1080
1080
1080
1080
1080
1234
1234
Weight
kg
90
120
150
170
170
205
210
220
Freon 5*
type
R22(R407C/R410A)
control method
Out balance expansion valve
Collecting pipe 6*
liquid pipe`s diameter
mm
gas pipe`s diameter
mm
