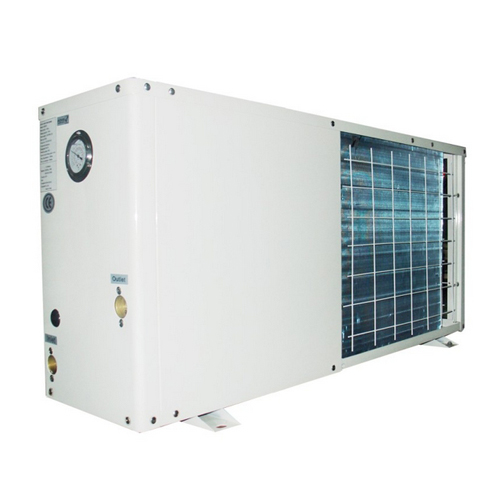

Swimming Pool Heat Pump

100% Satisfaction guaranteed or Your money back.

We will send the quotation to your email within 24 hours.

Product Description

Using a heat pump as a pool heater is the cheapest and most energy efficient method of pool heating and will substantially reduce your running costs. Swimming pool heat pumps are an environmentally friendly way of heating your pool reducing CO2 emissions.
We are the leading specialist supplier of swimming pool heat pumps. we specialise in selling a wide range of swimming pool heat pumps working as pool heaters from manufacturers that we consider to offer the best quality, reliability, price and performance. We provide a knowledgeable, friendly service to assist you with the purchase and installation of your pool heat pump - so please feel free to ask - any query at all.

Product Details

Minimum Order Quantity	1pcs
Payment Terms	T/T in advance
Certification	CE
Place	China

Spec:

Model	SLY20D	SLY30D	SLY50D	SLY60D	SLY100D	SLY200D
Input power (KW)	1.84	2.98	4.6	5.4	9.2	19
Heating capacity (KW)	7	14	20	24	40	78
Rated voltage (V)	220	220/380	380	380	380	380
Rated frequency (HZ)	50/60
Rated current (A)	8	13/6	9	12	18	32
Outlet water Max temp (℃)	35/45
Water flow (L/H)	2000	3600	5500	7000	11000	22000
Pipe Size	DN50	DN50	DN50	DN50	DN63	DN75
Dimensions (mm)	1050350650	1120490790	11204901260	11204901260	14507601060	19909802080
Packing dimensions (mm)	1120400800	1200520870	12005201440	12005201440	15208001230	206010502230
Weight (KG)	75	105	170	180	280	550
Leve of security	IP×4
Electric shock protection grade	1 Grade
Noise (Db)	≦40	≦50	≦55	≦60	≦70	≦75
Refrigerant	R417A/R407C/R404A/R410A/R22/R134A
Compressor	Panasonic	Copeland
Condenser: Titanium tube heat exchanger
Evaporator: Internal thread copper pipe and wave hydrophite aluminum foil
Throttle unit: Electronic expansion valve/ Thermal expansion valve/ Capillary
Body: Spray coating metal plate (Stainless steel body should add price) Spare parts: Plate heat exchanger Adopting high efficient plate heat exchanger, it’s a high efficiency of heat transfer. Doe to it’s special struction, one line water. One line gas, make efficiency efficiency heat exchange. When the water quality is good, plate heat exchanger is the best selection. Shell and tube heat exchanger Shell and tube heat exchanger specialize in water source heat pump. It’s feat are easy to wash and repair. Double pipe heat exchanger Make use of USA internal and external thread pipe technology, developing spring type serpentine pipe new structure condenser. It has a better transfer effect、a faster heat transfer speed, and can reduced scale, so have a long lifetime and reduced the maintain times. Compressor Adopt world famous Copeland flexible Scroll compressor, have features like durable and long life、over current protection、miss phase、overheat protection、strong ability of anti-liquid impact、high and low pressure protection etc. Copeland compressor has pressure-release valve inside, automatically release pressure when in high pressure. Circuit controlling system Have project control function, easily controlling the circulating pump、water compensation、returning water、water supply、auxiliary electric heating、PID automatic defrosting. Users can setup different parameters according to different project demands and achieve a various water supplying solutions, making the whole system automatic.
