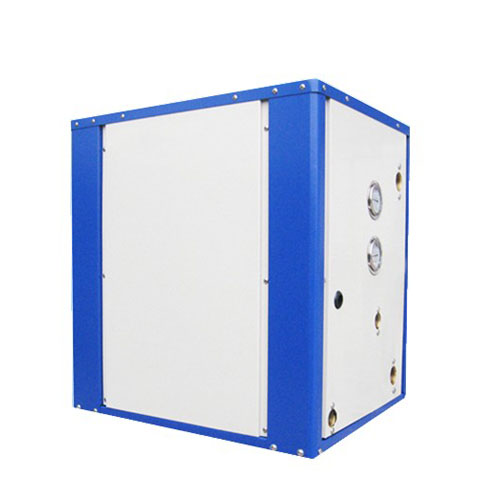

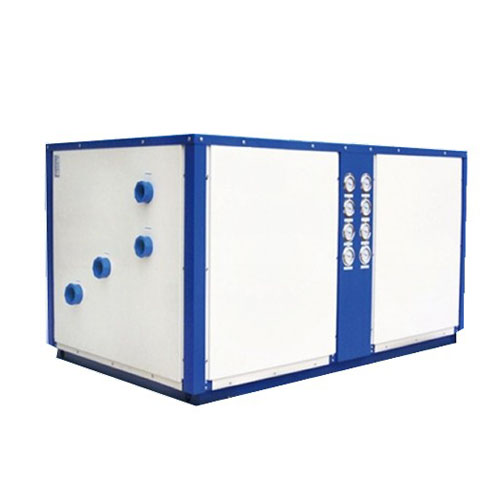

Water Source Heat Pump

100% Satisfaction guaranteed or Your money back.

We will send the quotation to your email within 24 hours.

Product Description

Water source heat pump makes use of underground water, river water, tap water, industrial waste water as water source. People can select the suitable water source according to the most favorable conditions. If take use of underground water, we dig wells, and usually return wells are more than pump wells, because pumping water is easier than returning water.
For geothermal source heat pump, the ground source is based on an underground buried pipe system. The two ends of the buried are connected to the inlet/outlet of source side heat exchangers of the heat pump. And the liquid circulates inside the pipe, so that transfer the heat form soil to water for life continually.

Product Details

Minimum Order Quantity	1pcs
Payment Terms	T/T in advance
Certification	CE
Place	China

Spec:

Model	SLS20D	SLS30D	SLS50D	SLS60D	SLS100D	SLS200D
Input power (KW)	1.8	2.9	4.4	5.4	8.8	17.6
Heating capacity (KW)	7.5	12	19	22	38	76
Rated voltage (V)	220	220/380	380
Rated frequency (HZ)	50/60
Rated current (A)	8	13/6	9	12	18	35
Related outlet water temp (℃)	55
Outlet water Max temp (℃)	60
Cold water temp drop(℃)	3~5
Water flow L/H	2000	3600	5500	7000	11000	22000
Pipe Size of Load side	DN25	DN25	DN25	DN32	DN32	DN50
Pipe Size of heat source side	DN25	DN25	DN25	DN32	DN32	DN50
Dimensions (mm)	1000680720	1000680720	1000680720	1000680720	1240830880	18861140880
Packing dimensions (mm)	1080760870	1080760870	1080760870	1080760870	13109001030	195612101030
Weight (KG)	88	130	175	180	360	620
Leve of security	IP×4
Electric shock protection grade	1 Grade
Noise (Db)	≦40	≦45	≦50	≦50	≦55	≦55
Refrigerant	R417A/R407C/R404A/R410A/R22/R134A
Compressor	Panasonic	Copeland
Condenser: Double-pipe heat exchanger
Evaporator : Shell and tube heat exchanger. The source is water(as ground water, river....)
Throttle unit: Electronic expansion valve / Thermal expansion valve/ Capillary
Body: Spray coating metal plate (Stainless steel body should add price)
Quantities in 20" container	28				16	9
Quantities in 40" container	64				36	18

Spare parts:

Name	Picture	Description
Copeland scroll Compressor		Compressor: Adopt world famous Copeland flexible Scroll compressor, have features like durable and long life、over current protection、miss phase、overheat protection、strong ability of anti-liquid impact、high and low pressure protection etc. Copeland compressor has pressure-release valve inside, automatically release pressure when in high pressure.
Plate type heat exchanger (for soil source heat pump)		Plate type heat exchanger: Adopting high efficient plate heat exchanger, it’s a high efficiency of heat transfer. Doe to it’s special struction, one line water. One line gas, make efficiency efficiency heat exchange. When the water quality is good, plate heat exchanger is the best selection.
Shell and tube heat exchanger (for well water source heat pump)		Shell and tube heat exchanger: specialize in water source heat pump. It’s feat are easy to wash and repair.
Double pipe heat exchanger		Double pipe heat exchanger: Make use of USA internal and external thread pipe technology, developing spring type serpentine pipe new structure condenser. It has a better transfer effect、a faster heat transfer speed, and can reduced scale, so have a long lifetime and reduced the maintain times.
Circuit controlling system		Controlling system: Have project control function, easily controlling the circulating pump、water compensation、returning water、water supply、auxiliary electric heating、PID automatic defrosting. Users can setup different parameters according to different project demands and achieve a various water supplying solutions, making the whole system automatic.
