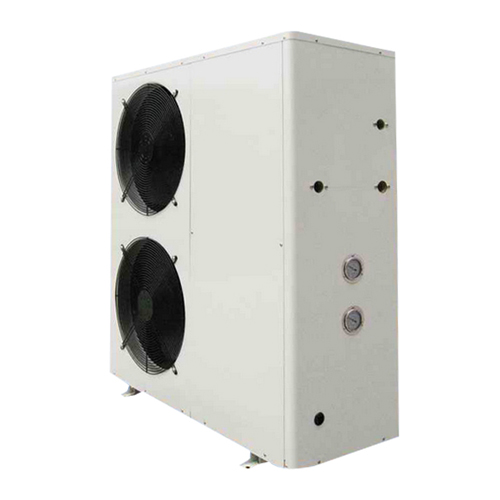

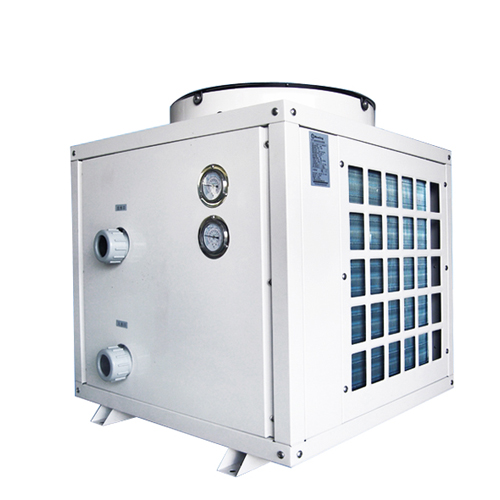

Air Source Heat Pump
Product Description
Air source heat pump extracts heat from the outside air in the same way that a fridge extracts heat from its inside. It can extract heat from the air even when the outside temperature is as low as minus 15℃.
Is air source heat pump suitable for your home?
To tell if air source heat pump is right for you, there’re a few key question to consider…
Do you have somewhere to put it? You'll need a place outside your house where a unit can be fitted to a wall or placed on the ground. It will need plenty of space around it to get a good flow of air. A sunny wall is ideal.
Is your home well insulated? Since air source heat pumps work best when producing heat at a lower temperature than traditional boilers, it's essential that your home is insulated and draught proofed well for the heating system to be effective.
What fuel will you be replacing? The system will pay for itself much more quickly if it's replacing an electricity or coal heating system. Heat pumps are not recommended for homes on the gas network.
What type of heating system will you use? Air source heat pumps can perform better with underfloor heating systems or warm air heating than radiator-based systems because of the lower water temperatures required.
Is the system intended for a new development? Combining the installation with other building work can reduce the cost of installing the system.
Product Details
| Minimum Order Quantity | 1pcs |
|---|---|
| Payment Terms | T/T in advance |
| Certification | CE |
| Place | China |
Spec:
|
Model |
SL20D |
SL30D |
SL50D |
SL60D |
SL100D |
SL200D |
|
Input power (KW) |
1.84 |
2.98 |
4.6 |
5.4 |
9.2 |
19 |
|
Heating capacity (KW) |
7 |
12 |
18.4 |
21 |
36.8 |
76 |
|
Cooling capacity(KW) |
5 |
8.8 |
13 |
16 |
27 |
55 |
|
Rated voltage (V) |
220 |
220/380 |
380 |
380 |
380 |
380 |
|
Rated frequency (HZ) |
50/60 |
|||||
|
Rated current (A) |
8 |
13/6 |
9 |
26/12 |
18 |
35 |
|
Rated outlet water temp (℃) |
55 |
|||||
|
Outlet water Max temp (℃) |
60 |
|||||
|
Water flow L/H |
2000 |
3600 |
5500 |
7000 |
11000 |
22000 |
|
Pipe Size |
DN25 |
DN25 |
DN25 |
DN32 |
DN32 |
DN50 |
|
Water pepe of Interface |
Internal thread(copper) |
|||||
|
Dimension(mm) |
1140*360*550 |
1120*490*790 |
1120*490*1260 |
1120*490*1260 |
1450*760*1060 |
1990*980*2080 |
|
Packing dimensions (mm) |
1210*400*710 |
1200*520*870 |
1200*520*1440 |
1200*520*1440 |
1520*800*1230 |
2060*1050*2230 |
|
Weight (KG) |
78 |
120 |
162 |
170 |
320 |
640 |
|
Leve of security |
IP×4 |
|||||
|
Electric shock protection grade |
1 Grade |
|||||
|
Noise (Db) |
≦40 |
≦50 |
≦55 |
≦60 |
≦70 |
≦75 |
|
Super quiet Noise (Db) |
|
≦45 |
≦45 |
≦45 |
|
|
|
Refrigerant |
R417A/R407C/R404A//R22/R134A |
|||||
|
Compressor |
Panasonic |
Panasonic/ Copeland |
Copeland |
|||
|
Condenser: Double-pipe heat exchanger |
||||||
|
Evaporator: Internal thread copper pipe and wave hydrophite aluminum foil |
||||||
|
Throttle unit: Electronic expansion valve / Thermal expansion valve/ Capillary |
||||||
|
Body: Spray coating metal plate (Stainless steel body should add price)
