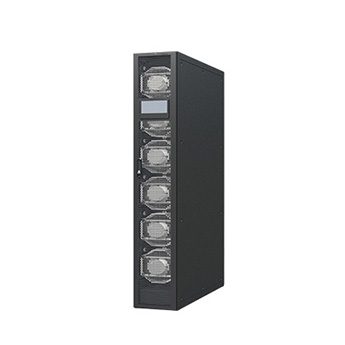

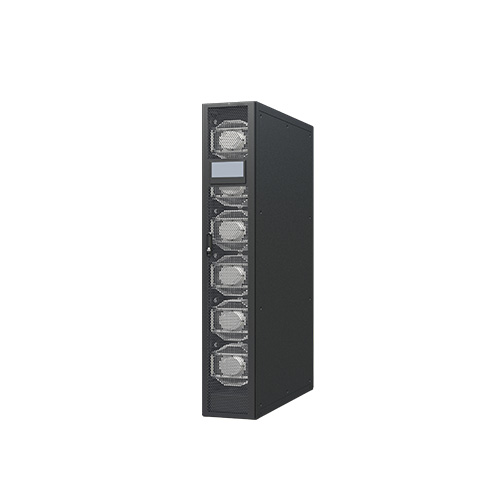

In-Row Cooling Unit
Product Description
Core advantages
●Key components are selected from well-known brand.
●Full EC inverter design, automatic adjustment of cooling capacity and air volume output.
●Wet film humidifier, saving 99% of humidification energy.
● L shape or U shape evaporator, large area, small resistance
●Compact outdoor unit, U shaped design, air return on three sides
●High return air temperature design, significantly improved energy efficiency
●Full frontal maintenance, pull-out design.
●Group control, flexible configuration.
Product Details
| Minimum Order Quantity | 1pcs |
|---|---|
| Payment Terms | T/T in advance |
| Place | China |
Application
Communications rooms, computer centers
Small and medium-sized data centers, modular data centers, cabinet cold(hot) aisle transformation, medium and high thermal density communication equipment and computer rooms, etc.
Military Command Centers, etc.Specification
|
CRA Row-Based Air-cooled Aircon |
|||||
|
Indoor unit model |
CRA3012 |
CRA3025 |
CRA3040 |
CRA3050 |
CRA3060 |
|
Power supply |
380V 3Ph~50hz |
||||
|
Air supply |
Front air supply |
||||
|
Performance parameter |
|||||
|
Cooling capacity(kW) |
12.5 |
25 |
40 |
50 |
60 |
|
Sensible capacity(kW) |
12.5 |
25 |
40 |
50 |
60 |
|
Max. operation current(A) |
27.5 |
37 |
50.2 |
54 |
57.2 |
|
Compressor Qty |
1 |
||||
|
Fan type |
EC centrifuge fan |
||||
|
Fan Qty |
3 |
6 |
2 |
3 |
3 |
|
Circulating air volume(m3/h) |
3000 |
5000 |
8000 |
10800 |
12000 |
|
Heating capacity(kW) |
2 |
3 |
6 |
9 |
9 |
|
Humidification(kg/h) |
1 |
1.5 |
3 |
4.5 |
4.5 |
|
Connecting pipe size(30m) |
|||||
|
Liquid pipe(mm) |
9.52 |
15.88 |
15.88 |
15.88 |
15.88 |
|
Gas pipe(mm) |
19.05 |
22 |
22 |
22 |
22 |
|
Humidification inlet pipe(internal thread) |
G3/4” |
||||
|
Water pump drain pipe(mm) |
ID9.53*OD17.02 |
||||
|
Natural drain pipe(mm) |
ID16*OD24 |
||||
|
Unit dimension and weight |
|||||
|
Dimension-W(mm) |
300 |
300 |
600 |
600 |
600 |
|
Dimension-D(mm) |
1100/1200 |
||||
|
Dimension-H(mm) |
2000/2200 |
||||
|
Weight(kg) |
190 |
210 |
250 |
310 |
310 |
|
Outdoor unit performance parameter(40℃) |
|||||
|
Flat-plate outdoor unit model |
CST013SP |
CMT038SP |
CMT055SP |
CMT077SP |
CMT088SP |
|
Centralized outdoor unit model |
N/A |
CMT038SF |
CMT055SF |
CMT077SF |
CMT088SF |
|
Outdoor unit performance parameter(45℃) |
|||||
|
Flat-plate outdoor unit model |
N/A |
CMT044SP |
CMT066SP |
CMT088SP |
CMT099SP |
|
Centralized outdoor unit model |
N/A |
CMT044SF |
CMT066SF |
CMT088SF |
CMT099SF |
|
Electronic element specification |
|||||
|
Air switch recommended(A) |
40 |
40 |
63 |
63 |
63 |
|
Indoor power cable diameter(mm2) |
4*6.0+1*6.0 |
4*6.0+1*6.0 |
4*16+1*16 |
4*16+1*16 |
4*16+1*16 |
|
Remark:
|
|||||
