Industrial Rooftop Air Conditioner, Roof Top Air Conditioners

Product Description

Product Details

100% Satisfaction guaranteed or Your money back.

We will send the quotation to your email within 24 hours.

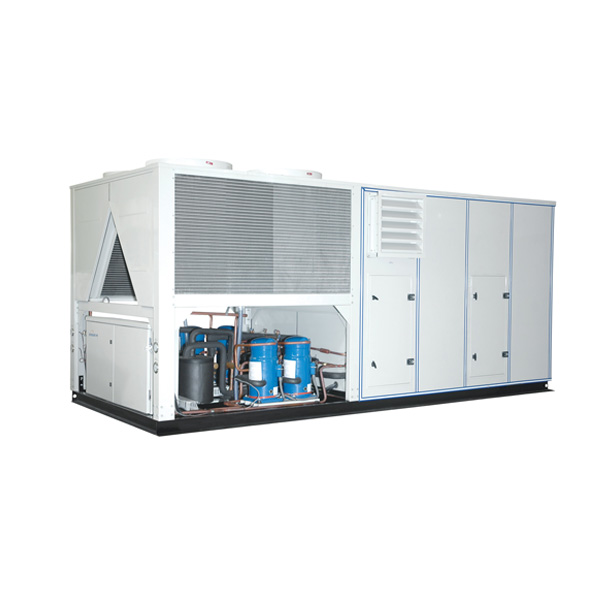

Rooftop Air Conditioners are single packaged which are factory assembled, tested and shipped completely with compressor, evaporator and condenser coils, fans and controls.
These packages are designed for outdoor installation, and they may be used for cooling only or heat pump.

1. Cooling condition: Indoor dry bulb/wet bulb: 29/19℃,Outdoor dry bulb/wet bulb: 46/24℃

2. Heating condition：Indoor dry bulb/wet bulb: 20/—℃；outdoor dry bulb/wet bulb: 7/6℃；

3. The air volume and static pressure`s specification in the table is standard, and can be designable.

4. Noise data is measured in the front of the units when cooling under the standard air volume.

5. Fin type and material can be designable.

Minimum Order Quantity	1pcs
Payment Terms	T/T in advance
Place	China

Features:

Cooling Capacity: From 3 ton to 35 ton.
Weather proof-Weather-proof, polyester epoxy power electrostatic paint oven-baked finish for sheet metal and multi epoxy polyester coating for base frame for maximum protection
Intelligent control-Parameters of the unit are monitored and adjusted by the microcomputer system.
High efficiency- High-efficiency thanks to the Anti-vibration mounting scroll compressors.
Immediate operability - Quick start-up is assured once the installation is complete.
Safety and reliability -Complete unit control function, multi-protection, safe and reliable operation.
Quiet Operation:
This type is constructed and engineered with noise reduction as a first consideration. (low noise mounted fans are used. Fiber glass insulation for evaporator section and compressor are mounted on vibration isolators)

GT-WKR Series-Roof Top AC Specification 1
Model GT-WKR-									10		15			18			20		25		30	35

Specification	Cooling capacity 1*					kW			10.5		15.0			18.5			21.0		26.3		29.8	35.0
	Heating capacity 2*					kW			11.5		15.9			19.5			22.1		27.6		32.6	37.1
	Supply air 3*					m3/h			1800		2400			2900			3500		4500		5000	5800
	Static pressure 3*					Pa			100		150			150			180		200		250	250
	Noise 4*					dB(A)			60		60			62			62		65		65	68
	Power								3N-380V-60Hz
	Total capacity								3.9			5.74			7.0		8.27		9.96		11.0	14.15
	Color								White
ooling system	Compressor		Type						Efficient scroll closed
			Quantity						1			1			1		1		1		1	2
	Supply air fan		Type						Low noise centrifugal type
			Capacity				kW		0.37			0.55			0.75		0.75		1.1		1.5	2.2
	Evaporator		Type						Inner grooved copper tube and aluminum fin
			Fin type 5*						Slotted fin hydrophilic aluminum fin
	Condenser		Type						Inner grooved copper tube and aluminum fin
			Fin type 5*						Rippled hydrophilic aluminum fin
	Condenser fan		Type						Low noise axial type
			Quantity						1			1			1		1		1		1	2
	Refrigerant		Refrigerant						R22/R407C
			Refrigerant control						External balance type thermal expansion valve
Air filter									Initially effect plate filter
Dimensions					L			mm	1400			1400			1600		1600		1850		1850	2200
					W			mm	1050			1050			1200		1200		1400		1400	1800
					H			mm	1050			1050			1050		1050		1200		1200	1520
Weight								kg	200			230			260		300		550		600	850

Model GT-WKR-									40	50			60			70		90		110			120

Specification		Cooling capacity 1*					kW		42.0	52.8			61.2			70.2		87.5		105.1			122.5
		Heating capacity 2*					kW		44.1	55.4			62.5			73.8		92.8		112.0			130.0
		Supply air 3*					m3/h		7000	8600			10000			12000		14500		17000			20000
		Static pressure 3*					Pa		300	300			300			350		350		400			400
		Noise 4*					dB(A)		68	69			69			70		71		72			72
		Power							3N-380V-60Hz
		Total capacity							17.24	20.72			23.0			29.76		39.1		44.66			51.58
		Color							White
Cooling system		Compressor		Type					Efficient scroll closed
				Quantity					2	2			2			2		2		4			4
		Supply air fan		Type					Low noise centrifugal type
				Capacity			kW		2.2	3			4			4		5.5		7.5			7.5
		Evaporator		Type					Inner grooved copper tube and aluminum fin
				Fin type 5*					Slotted fin hydrophilic aluminum fin
		Condenser		Type					Inner grooved copper tube and aluminum fin
				Fin type 5*					Rippled hydrophilic aluminum fin
		Condenser fan		Type					Low noise axial type
				Quantity					2	2			2			4		4		4			4
		Refrigerant		Refrigerant					R22/R407C
				Refrigerant control					External balance type thermal expansion valve
Air filter									Initially effect plate filter
Dimensions				L			mm		2200	2600			2600			3200		3200		6000			6000
				W			mm		1800	2200			2200			2200		2200		2300			2300
				H			mm		1520	1700			1700			1900		1900		2300			2300
Weight							kg		850	1100			1250			1400		1650		1850			2200
